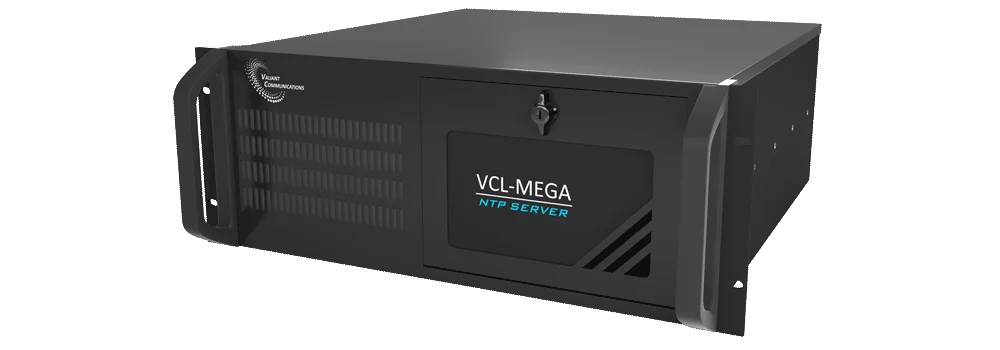

VCL-Mega, NTP Time Server

Get Data Sheet

VCL-Mega, NTP Time Server is a high-availability, high performance GPS / GNSS (Global Navigation Satellite System) NTP server that can used to provide time at a national, state or an institutional level. The VCL-Mega, NTP Server can be configured to provide up to 16 x 1G/10G NTP outputs which are locked to 1+1 Redundant GPS GPS/GNSS Receivers. Alternately, the same may also be configured to use a 1 PPS source from a private (local) Cesium source.

The VCL-Mega NTP Time Server equipped with a high bandwidth, 16 Core NTP Server engine which is designed to serve up to One Million NTP requests per second. A total of 16 x 1G or 10G ports are available in any combination in increments of 4 x 1G or 10G ports per slot (i.e., a total of 4 x slots = 16 x ports). Each 1G port is capable of handling up to 12,000 NTP requests per second and each 10G port is capable of handling up to 120,000 NTP requests per second.

Features
Specifications

Features and Highlights

Integrated, Dual (1+1) GPS / GNSS Receivers with automatic failover function
Functions as a Primary NTP Server
Automatic failover function to a Secondary NTP Server, in the absence of internal GPS Signal
High bandwidth NTP performance
Supports up to 16 NTP Ports – each with separate IP address
Up to 12,000 NTP requests per second per 1G port
Up to 120,000 NTP requests per second per 10G port
The system can be installed with multiple NTP Ports - 16 x Independent 1G or 10G ports - in any combination
May be used to support 10 Million NTP / SNTP Slaves from a single VCL-Mega NTP Server unit
May be configured so that all 16 NTP Ports serve a common URL using NAT protocol
Supports Unicast, Multicast, Broadcast
Leap Second correction support
MD5 authentication for NTP clients
Alert notifications via SNMP Traps, SNMPv2, SNMPv3, SMTP (Email)
Concurrent IPv6 and IPv4 operation
Supported network protocols: IPv4, IPv6, SSH, TELNET, FTP, SYSLOG, SCP, SFTP
DHCP Support
Secure network management: enable or disable options
Double Oven Quartz Oscillators (OCXO) hold-over
1+1 Redundant AC Power Supply option

Security and Protection:

Password Protection with password strength monitor
SSH.

Inputs:	GPS/GNSS, NTP Time Source, 1PPS
Outputs:	Up to 16 x NTP Ports – 1G electrical / optical, or 10G optical ports Automatic failover function to a secondary NTP Server, in the absence of internal GPS Signal ITU-T G.812 compliant holdover [OCXO (Double Oven-Controlled Crystal Oscillator)]
Power Supply:	110~240V AC, 1+1 Redundant Hot-swappable PSU
Service Capacity:	Suitable for servicing up to 1 Million NTP / SNTP requests per second.

Firewall Features:

Resilient to DoS attacks.
Integrated Firewall features.
White List (may be used to allow only select IP address and IP domains that shall be allowed to access and update time from the VCL-Mega NTP Server).
Black List (may be used to exclude select IP address and IP domains that shall be excluded and prohibited from accessing VCL-Mega NTP Server. This feature is especially useful in excluding the foreign IP domains so that DoS attacks cannot be generated fromsources that are beyond the institutional perimeter, or outside the national boundaries.
MD5 Authentication. Useful in providing additional protection to NTP / SNTP clients or slaves and protect against malicious NT Pserver spoofing.

GPS/GNSS Receiver Specifications:

50 Channel GPS Receiver
72 Channel GNSS Receiver
GPS L1 frequency, C/A Code Receiver
Tracks up to 12 satellites simultaneously
Synchronizing Time:

Acquisition time - Hot Start: 1 sec.
Acquisition time - Warm Start: 28 sec.
Acquisition time - Cold Start: 28 sec.

GPS / GNSS Signal:

Tracking and Navigation: -162 dBm
Reacquisition -160 dBm
Cold Start -148 dBm

Antenna Connector: SMA
Accuracy Of Time-Pulse Signal referenced to GPS: ± 30ns (raw)
Accuracy Of Time-Pulse Signal referenced to GNSS: ± 20ns (raw)
Accuracy Of Time-Pulse Signal referenced to GPS/GNSS: ± 15ns (compensated)
(Note: with all satellites in view at -130db).

Antenna Specifications:

Antenna Type: Active, Rooftop Mounting
Polarization: Right hand circular
Frequency Band: 1575.42 MHz + 10 MHz
Amplifier Gain: 40dB
VSWR: <2.0 Max, 1.0 Typical
Operating temperature: -40C to +85C
Out of Band Rejection: ≥ -60dB @ +50MHz off center (1575.42 MHz) frequency
Lightening Protection: According to EN61000-4-5 Level 3
LMR400 (or equivalent) Cable Length - 30, 50, 60 and 90 meters.

Network Time Protocol

NTP v2, (RFC 1119), NTP v3 (RFC 1305), NTP v4, (RFC 5905), SNTP v3 (RFC 1769), SNTP v4 (RFP 2030), MD5 Authentication
Up to 12,000 NTP requests per second / per 1G port
Up to 120,000 NTP requests per second / per 10G port
Internet Protocol: IPv4/IPv6
NTP version 4.2.8p7
Time Protocol: TIME (RFC 868)
Daytime Protocol: DAYTIME (RFC 867)
Supports Unicast, Multicast and Broadcast
NTP Peering

MTBF:

Per MIL-HDBK-217F: ≥ 37 years @ 24C
Per Telcordia SSR 332, Issue 1: ≥ 42 years @ 24C

Monitoring and Management:

LED Indications:

Antenna Detect
GPS Lock
PLL Lock

The system configuration can be managed by GUI. A text based and menu driven setup utility is also available via Telnet or SSH. An optional NMS allows multiple systems installed on a network to be monitored and configured from a single or multiple locations.
